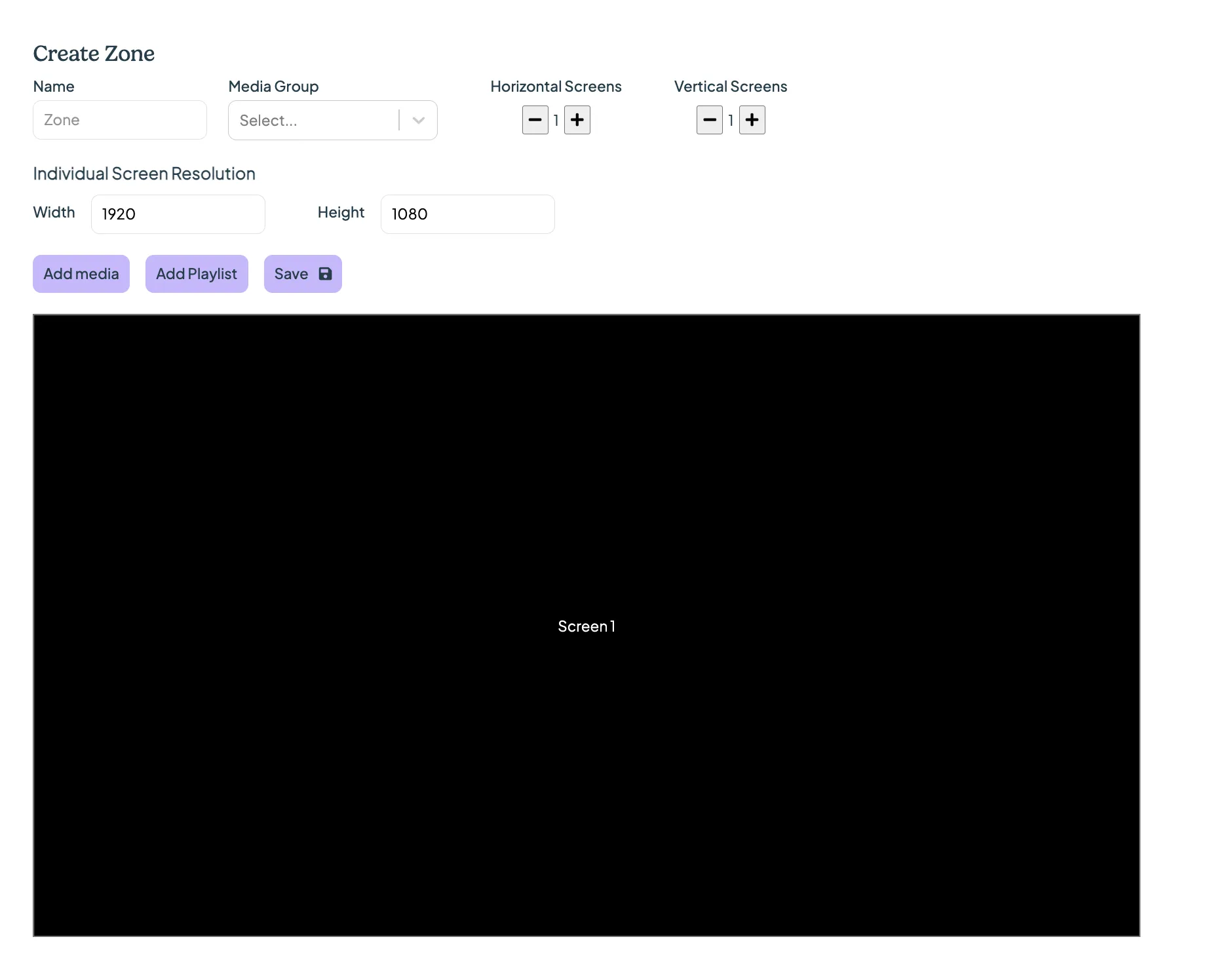

Zone editor

zones let you split a screen (or group of screens) into multiple areas, each playing its own media or playlist they’re great for multi screen deployments driven by a single media player led layouts where the resolution may be less than 1080px video walls where content needs to be divided per screen split screen layouts zones are treated like any other media item, so once created they are saved in the manage section into a folder and can be added to a playlist to display on your screens because zones are positioning the content within them, they are usually the only item within a playlist – especially if you are relying on those positions due to using an led or other odd resolution screen consider using custom resolution settings in the device settings if you are only using it to position content correctly on an led you can use a zone and include other images and videos within the same playlist, these extra images and videos just will not be positioned within the zone and will display full screen this can be used for full screen takeovers for example on a 1x4 screen layout you can create a zone that separates content into each of the four screens, then put a 7,680 x 1080 video to run over all four another example would be a standard 1920 x 1080 screen – with a zone to place a playlist in a specific area you can use the permissions system to provide access to the playlist for specific users to update content, without impacting other content in the zone this zone can be added into a playlist with other images and videos and will just play on rotation the same as any other content access and enablement zones are an advanced licence feature and must be enabled on your account by the fusion signage team email support\@fusionsignage com au mailto\ support\@fusionsignage com au and ask to have zones turned on custom resolution setting if you are using zones to position content correctly on your led at a lower resolution (i e 600 x 200 pixels), consider using our custom resolution setting on the application setting the custom resolution on the device will ensure any content sent to the screen will be displayed only at that resolution and means you won’t have to use a zone at all single device zones can only be used on a single device (whether outputting to a single or multiple screens) if you have a menu board setup (like 1x3) with multiple screens or devices consider using our sync groups instead creating a zone in fusion signage, go to manage → add choose zone (available after the feature is enabled) when the zone editor opens you can configure name e g “3×1 video wall ” screen array set horizontal and vertical screens (e g , 3×1, 2×2, 1×3) individual screen resolution enter width and height per screen / panel (e g 1920×1080, or your led panel’s native resolution) media assignment for each tile, click add media or add playlist and choose what should play there once the media or playlist has been added, you then have the options to further customise and control the positioning of the media within your zone using the tools within the media window you can bring to the front maximise duplicate remove customise the positioning and size using the x/y and the dimensions co ordinates, or simply click and drag to where you would like it positioned make sure to click on save when done! handy hint think in 'tiles' or zones each tile represents a physical screen (or a portion of a screen) with its own content multiple videos make sure your device supports playback for the number of videos you are displaying within the zone many devices will not support more than one video playing at the same time putting a zone on the screen create a new playlist dedicated to your zone add the zone to the playlist assign the playlist to your screen important workflow notes using a zone for a custom resolution the playlist should contain only the zone assign this playlist directly to the screen all content is managed within the zone itself, so no additional images, videos, or slides are required in the outer playlist using zones to split content across a display (single or multiple screens) you can include other images or videos in the same playlist as the zone content outside the zone will play full screen as normal, while the zone displays its assigned content updating zone content to update content within a zone, you do not need to edit the playlist assigned to the screen instead, either edit the playlists assigned to the zone tiles, or open the zone editor and change which playlist is assigned to each section best practice we recommend giving the playlist containing the zone a clear name, such as "zone playlist keep on screen" this helps identify the playlist that maintains the zone layout future content updates should be made to the playlists assigned within the zone, rather than replacing the zone playlist itself common mistake customers often create a zone layout, assign it to a screen, and later publish a new content playlist directly to that screen doing so removes the zone layout and causes all content to play full screen troubleshooting empty zone error if you receive this error "cannot read properties of undefined (reading 'length'))" it's usually because the playlist assigned to the zone is empty, or content level scheduling has been configured so that nothing is currently scheduled to play to resolve this issue, ensure that the playlist assigned to the zone contains content and that at least one item is scheduled to play at the current time looking for something else? we can’t wait to hear about it reach out to our sunshiney support and we'll be in touch in a flash
